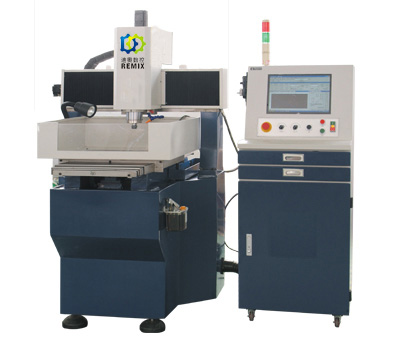

Metal engraving machine
Basic parameters of metal engraving machine equipment:
|
Model
|
DA-330
|
DA-430
|
||
|
Positioning accuracy
|
X,Y,Z axis positioning accuracy
|
0.015/0.015/0.015mm
|
||
|
Repeat positioning accuracy of X, Y, Z axis
|
0.01/0.01/0.01mm
|
|||
|
Travel range
|
X, Y, Z working stroke
|
300 x200 x 90
|
400 x300 x 90
|
|
|
Work table size
|
360 x 260
|
480 x380
|
||
|
The maximum working load
|
30kg
|
|||
|
The drive system
|
The drive system
|
Stepping
|
||
|
The main shaft.
|
The magnitude of the power of
|
800w/
|
||
|
Speed range
|
0-24000RPM
|
|||
|
Chuck range
|
ER11(3.175-4-6)
|
|||
|
Machine speed
|
The maximum operating speed
|
4m/min
|
||
|
The maximum processing speed
|
3m/min
|
|||
|
Moving parts
|
Precision ball screw
|
C5 double nut - 16mm 5mm pitch
|
||
|
Precision linear guide rail
|
HIWIN Class H 25mm
|
|||
|
Screw support end fixed end bearing
|
NSK P5 bearing pair
|
|||
|
CNC System
|
Control card
|
PCI 3A(optional Fengyi)
|
||
|
Independent control cabinet
|
Standard
|
|||
|
The power, size
|
The machine cover
|
The standard semi batch
|
||
|
Power requirements
|
AC 220V/1.2KW
|
|||
|
Machine dimensions
|
650*520*1450mm
|
1610*580*1500mm
|
||
|
Weight (net weight)
|
300kg
|
600kg
|
||
