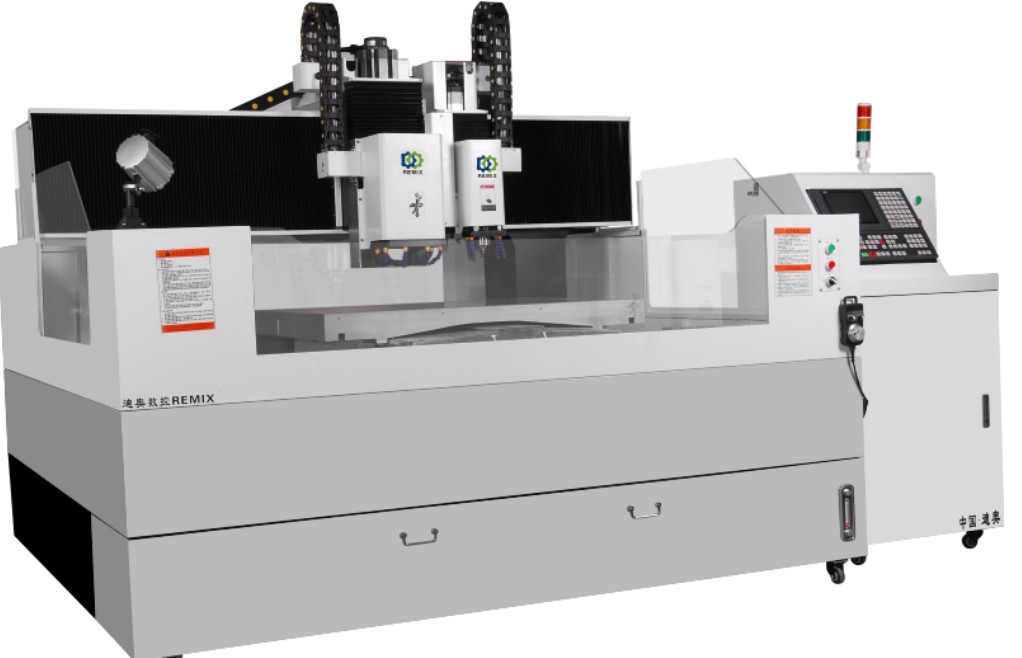

Large carved machine
Parameters of large carved machine products:
| Machine Specifications | |||||
| ITEM/MODEL | DA-1180(Single head machine) | DA-1560(Single head machine) | |||
| WORK MATERIAL | Al Cu high light | Large size optical glass | Al Cu high light | Large size optical glass | |
| WORK TABLE | |||||
| Table | T groove | T groove | |||
| Table size | 1100×700mm | 1500×600mm | |||
| Table load capacity | 200kg | 200kg | |||
| MOVEMENT RANGE | |||||
| Single head processing | 1100×800×200mm | 1500×600×200mm | |||
| Two-headed simultaneously | |||||
| Two-headed center distance | 300mm | ||||
| Spindle nose to work table | 130mm | ||||
| ACCURACY | |||||
| Positioning accuracy | 0.008/300mm | 0.008/300mm | |||
| Repeatability accuracy | 0.005mm | 0.005mm | |||
| SPINDLE | |||||
| Spindle power | 0.8/1.2/2.2/3.3 Kw(Optional) | 0.8/1.2/2.2/3.3 Kw(Optional) | |||
| Spindle speed range | 24000/36000/60000/100000 rpm(Optional) | 24000/36000/60000/100000 rpm(Optional) | |||
| Change cutters form | Pneumatic (Optional: manual mode) | Pneumatic (Optional: manual mode) | |||
| Collet | Φ10/Φ6/Φ4/Φ3.175 | Φ10/Φ6/Φ4/Φ3.175 | |||
| FEEDING SPEED | |||||
| Rapid traverse | 15m/min | 15m/min | |||
| Cutting feed rate | 9m/min | 9m/min | |||
| POWER / SIZE | |||||
| Air pressure | 0.7～0.8mp | 0.5～0.6mp | 0.7～0.8mp | 0.5～0.6mp | |
| Pull of vacuum | -(0.06-0.08)mp | -(0.06-0.08)mp | |||
| Power spec. | AC 220V (3P 4L)50~60Hz | AC 220V (3P 4L)50~60Hz | |||
| Shape sheet metal | The standard semi batch(Optional: full face) | The standard semi batch(Optional: full face) | |||
| Total Power | 4.5Kw | 5.5Kw | |||
| Machine weight | 2200kg | 22kg | |||
| Machine size | 2300*2100*2000mm | 2300*2100*2000mm | |||
| NC Specifications | |||||
| Control system | Bao Yuan / Weihong / wedge induced | The system disk | 1G | ||
| At the same time reduction shaft | 4 axis (the function of tool radius compensation) | Data disc | 2G | ||
| The least mobile unit | 0.001mm | The system disk protection | Read,automatic antivirus | ||
| Monitor | Display 10.4" COLOR TFT | Support file format | DXF/PLT/ENG/GCODE/DEMO/U00 | ||
| Language | Chinese / English | Manual pulse generator | MPG | ||
| Other standard parts | |||||
| Z axis automatic tool setting gauge | METROL | Digital display type oiling machine | Taiwan baoteng | ||
| MPG | Bao Yuan / Weihong / wedge induced | Working lamp | LED lamp, color lamp, explosion-proof lamp | ||
| Water spraying device | 360 DEG omni-directional spray device | System | GLASS/ACRYLIC Processing system | ||
