Double machine carved DA-600T application industry:
Opening and shape processing glass lens;
PC, acrylic, PET window lens cutting, edge;
High light processing mobile phone panel;
Batch processing of mobile phone keys;
Batch processing mobile phone test fixture

Double head carved machine DA-600T machine features:
DA-600T series of carving machine body with billion years of Ji'nan porcelain stone is not high precision deformation processing, no vibration
The original C3 grade precision imported screw precision high wear engraving machine
The original C3 grade precision imported screw precision high wear engraving machine
Taiwan original P grade rail mounting location plate, to ensure the precision of the track never shift
Screw the fixed end with paired high precision matching angle bearing, high precision, long life
Timing oil automatic oil supply system,, longer service life
High precision, high sensitivity, Japan meidelong tool setting gauge
The spindle with industrial chillers, constant temperature, long service life of the spindle
The 1000000 high bending resistance flexible cable

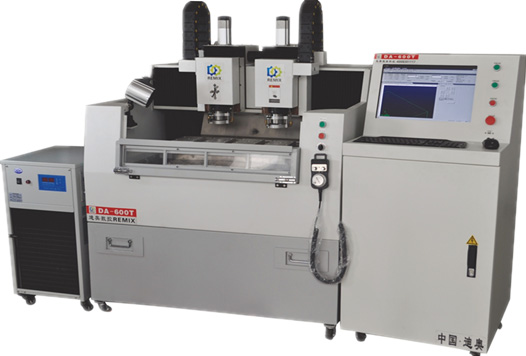

Double head carved machine for DA-600T products:

Machine Specifications
ITEM/MODEL		DA-600(Single head machine)		DA-600T(The double headed machine)
WORK MATERIAL		GALSS	ACRYLIC	GALSS	ACRYLIC
WORK TABLE
Table		T groove	T type slot + vacuum plate	T groove	T type slot + vacuum plate
Table size		500×400mm	500×400mm	700×500mm	700×500mm
Table load capacity		100kg		120kg
MOVEMENT & RANGE
Single head processing		500×400×120mm		350×500×120mm
Two-headed simultaneously		－		350×500×120mm
Two-headed center distance		－		250/330mm(可调）
Spindle nose to work table		130mm		130mm
ACCURACY
Positioning accuracy		0.01/300mm		0.01/300mm
Repeatability accuracy		0.005mm		0.005mm
SPINDLE
Spindle power		1.2/ 1.5 /3.3 Kw(Optional)		1.2/ 1.5 /3.3 Kw(Optional)
Spindle speed range		20000/50000/60000 RPM(Optional)		20000/50000/60000 RPM(Optional)
Change cutters form		Pneumatic (Optional: manual mode)		Pneumatic (Optional: manual mode)
Collet		Φ10/Φ6/Φ4（PC-COLLET TYPE)		Φ10/Φ6/Φ4（PC-COLLET TYPE)
FEEDING SPEED
Rapid traverse		15m/min		15m/min
Cutting feed rate		9m/min		9m/min
POWER / SIZE
Air pressure		7~8 Kg/c㎡	5~6 Kg/c㎡	7~8 Kg/c㎡	5~6 Kg/c㎡
Pull of vacuum		1Kg/c㎡		1Kg/c㎡
Power spec.		AC 220V (3P 4L)50~60Hz		AC 220V (3P 4L)50~60Hz
Shape sheet metal		The standard semi batch(Optional: full face)		The standard semi batch(Optional: full face)
Total Power		4.5Kw		5.5Kw
Machine weight		1700kg		1800kg
Machine size		1400*1600*1600mm		1400*1600*1600mm
NC Specifications
Control system	Weihong		The system disk	1G
At the same time reduction shaft	4 axis (the function of tool radius compensation)		Data disc	2G
The least mobile unit	0.001mm		The system disk protection	Read, automatic antivirus
Monitor	Display 10.4" COLOR TFT		Support file format	DXF/PLT/ENG/GCODE/DEMO/U00
Language	Chinese / English		Manual pulse generator	MPG
Other standard parts
Z axis automatic tool setting gauge	METROL		Digital display type oiling machine	Baotong 2L
MPG	Weihong		Working lamp	LED lamp, color lamp, explosion-proof lamp
Water spraying device	360 DEG omni-directional spray device		System	GLASS/ACRYLIC Processing system
The company's product specifications, design characteristics are improved, the above parameters are subject to change without notice!
